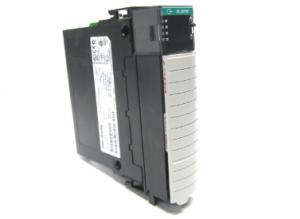

1769-OF4CIA A-B Compact I/O module ALLEN BRADLEY in stock

Brand Name : ALLEN BRADLEY

Model Number : 1769-OF4CIA

Certification : CE

Place of Origin : Singapore

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100+pc+on stock

Delivery Time : on request

Packaging Details : carton

Rockwell Automation : Rockwell Automation

Brand : Allen-Bradley

Part Number/Catalog No. : 1769-OF4CIA

Series : MicroLogix 1400

Product Family : MicroLogix

Module Type : Controller

Product Type : MicroLogix 1400 Controller

Inputs : (12) Digital Fast 24V DC, (8) Digital Normal 24V DC

Outputs : (12) Relay

Programming Software : RSLogix 500; RSLogix 500 Micro

Weight : 2 lbs

Dimensions : 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in)

Contact Now

The Allen-Bradley Compact I/O module with part number 1769-OF4CIA is analog output module with embedded Four (4) differential, individually isolated channels. This module has an output current signal of 0-20mA and 4-20 mA with full analog current range of 0-21 mA and 3.2-21 mA respectively. This module belongs to the 1769 Compact I/O system and designed in compatibility with MicroLogix 1500 and CompactLogix controller. This module may also be installed in a remote I/O chassis using DeviceNet communication adapter with part number 1769-OF4CIA or Ethernet Communication adapter with part number 1769-AENTR.
Primarily, analog output modules are used to drive Final Control Elements (FCE) or actuators to implement multiple control points. Available data formats are Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range. Configurable channels parameters include output range selection, module inhibition, module description and slot assignment. The module generates a unique data table for each instance of installation where the channel addresses, module mode bits, module state and other runtime parameters.

This module is a low maintenance module. It has auto-calibration that is performed by the module every time the module is power cycled. Additionally, self-test is performed every power cycle. Once the module enters self-test, the module is unresponsive. It will automatically enter active operation, new values is actively compared to the high and low clamp settings to prevent the output from exceeding the defined limits.

The 1769-OF4CIA is a Four (4) channel analog current isolated output module classified under the CompactLogix series manufactured by Allen-Bradley. The 1769-OF4CI features 16-bit resolution and supports the Belden 8761 shielded compact analog module cable. The 1769-OF4CIA features 330 µ V per bit 0 to 20mA with a 5 Volt DC 165 mA bus current. This unit also features a heat dissipation of 2.0 Watts. It features a conversion rate of 110 milliseconds and a limited voltage per current ratio that is greater than 2.9 milliseconds. The module comes with a resistive load of 0 to 500 Ohms and has an output inductive load rated at 0.1 mH. The 1769-OF4CIA comes with electrostatic discharge that can damage integrated circuits or semiconductors. Therefore, when touching the unit, touch a grounded object so as to discharge the static potential. Avoid touching the bus connector or the connector pins and use a static-safe workstation if available. While not in use, the 1769-OF4CI should be kept in the static shield box.
The 1769-OF4CIA comes with an accuracy of +/-0.35% with an accuracy drift with respect to the temperature of +/-0.0058% FS per degree Celsius. The 1769-OF4CIA features +/-0.05% nonlinear and +/-0.005% repeatability. It comes without a specified field calibration and has a module error boundary of about +/-0.55% and an output impedance rated at less than 1 MOhm. The unit also features open and short circuit protection with an output excess voltage protection. It has the ability to maintain its full operational capability at a maximum short circuit current of about 21 mA. The 1769-OF4CIA compact current output module has dimensions of 118 by 35 by 87 millimeters (4.65 by 1.38 by 3.43 inches) and a weight of 270 grams (0.60 pounds)

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

1769-OF4CIA A-B Compact I/O module ALLEN BRADLEY in stock1769-OF4CIA A-B Compact I/O module ALLEN BRADLEY in stock
